OX or XO
2 panels · 5 ft
- 59½″ × 79½″Blinds
- 58½″ × 81″Blinds
- 59½″ × 95½″
Novatech 550 Series
Patio Doors Winnipeg

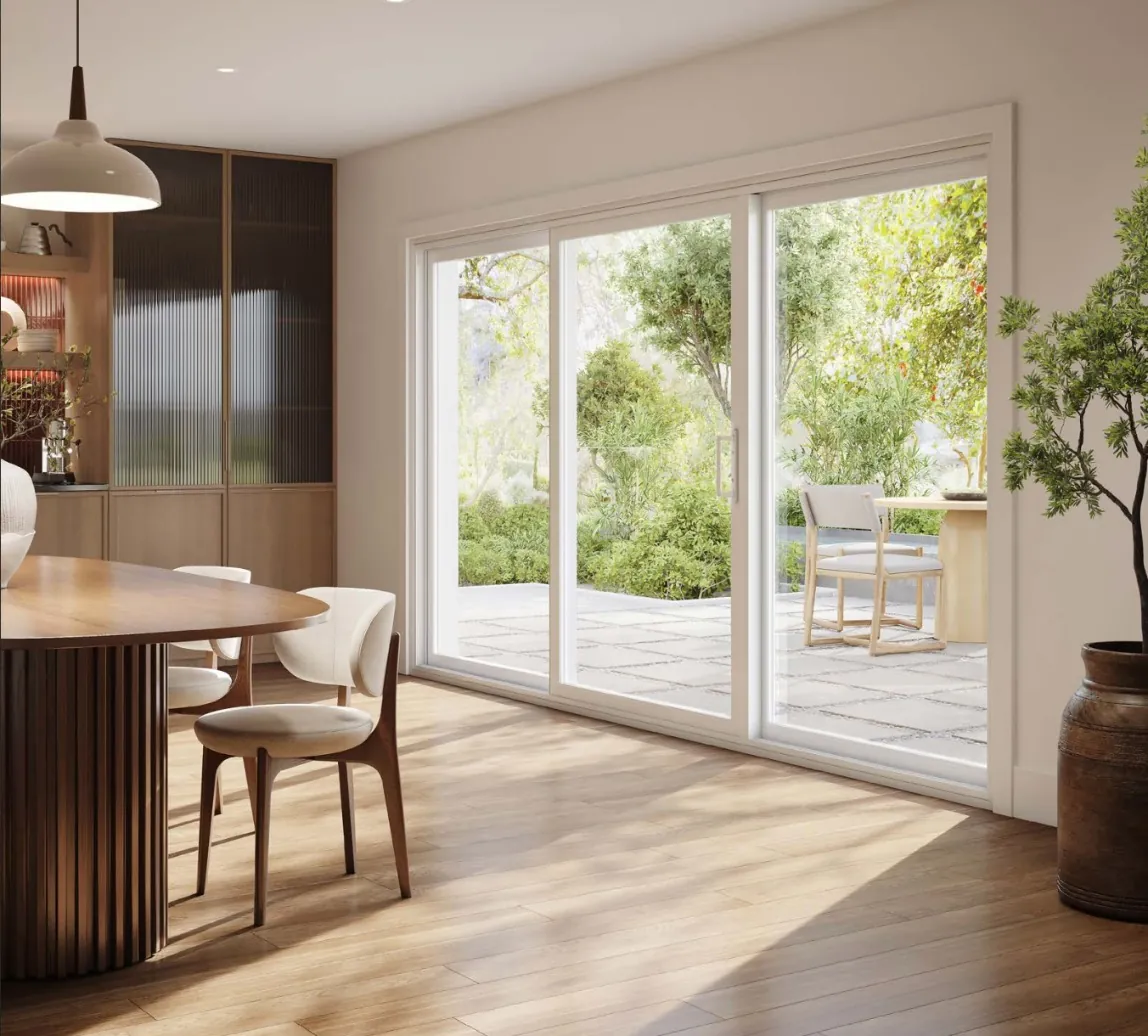

Our sliding patio doors are the Novatech 550: a clean, modern profile, an elegant handle and smooth everyday sliding. Choose 2, 3 or 4 panels, double or triple glazing and blinds sealed between the glass, installed by our own crew across Winnipeg.
- ENERGY STAR® certified
- 20-year limited warranty
- Blinds between the glass
- Made in Canada by Novatech
The door
Meet the Novatech 550
A slim, modern frame that blends in with your decor, a handle that feels solid in your hand, and panels that glide easily every time you step outside.

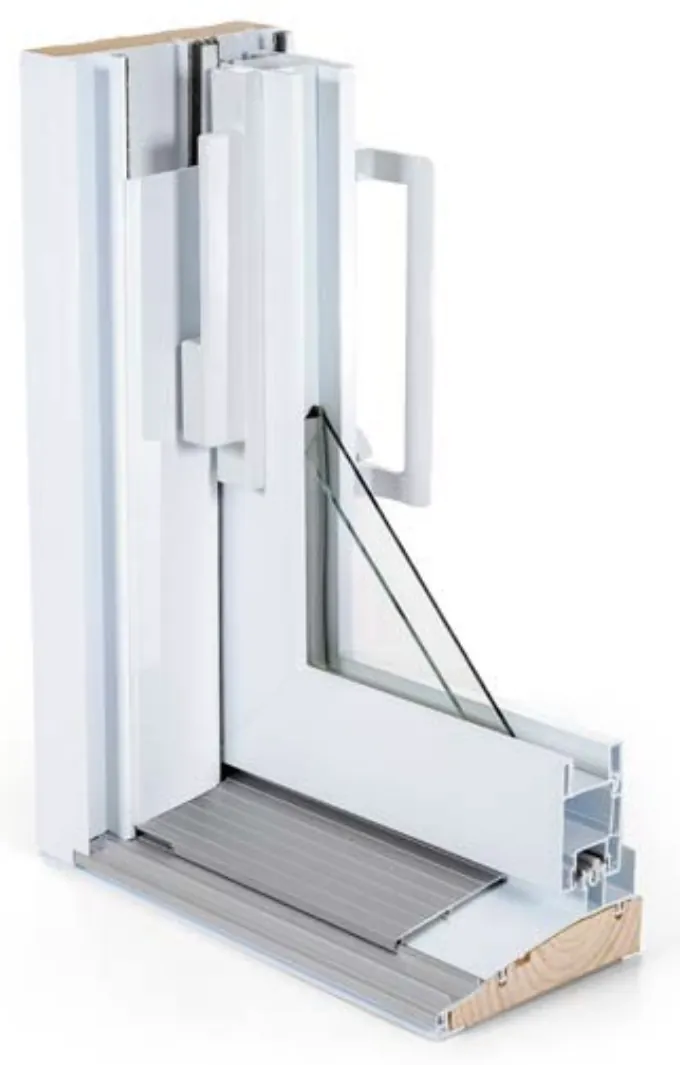

The 550 is a vinyl door on a wood frame, built in Canada by Novatech. It comes in four frame depths, so it fits cleanly in thick or thin walls, and it can be dressed up with blinds between the glass, grilles, sidelites or a transom to suit your home.
A3Air tightness rating
400 PaWater resistance (440 Pa with the sill tower riser)
R-PG40Performance grade (DP-40 structural test)
ER 39Energy rating with triple glazing and two Low-E coatings (U 1.19)
Performance tested on a 71½″ × 81″ door to AAMA/WDMA/CSA101/I.S.2/A440 (NAFS 2011, 2017 and 2022). ER = Energy Rating, higher is better; U-value, lower is better.
Hardware & colours
Handles and Finishes
Hardware comes in zinc as standard or stainless steel as an option, and a double-point locking system is available on every layout.
Standard

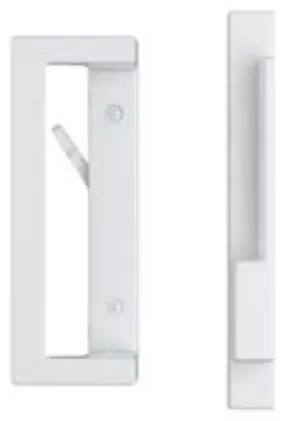

Look handle
Slim and simple, in white.
- White
Option

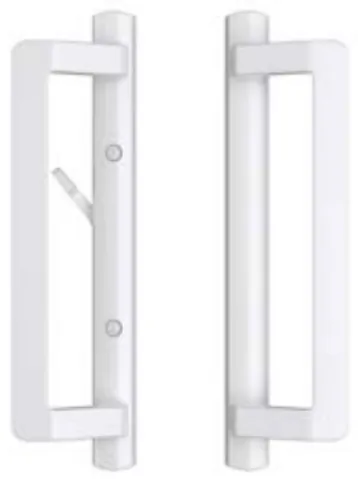

View handle
A taller, sculpted handle in four finishes.
- White
- Black exterior / White interior
- Oil rubbed bronze (paint)
- Satin nickel
Door colours
Two whites as standard, or a custom colour from over 100 options. Handles are painted to match the door.
Whiteblue tint
Whitecream
Custom colour100+ colours, option
Glass
Double Glazed as Standard, Triple Glazed as an Upgrade
Every package is tempered Low-E glass with argon, and every one is ENERGY STAR® certified. A Low-E coating (shown in orange) reflects heat back into your home in winter; the surface number tells you where the coating sits, counted from the outside in.
Standard
35ER
Double glazed
Two panes with a Low-E coating on surface 3. U-value 1.65.
Option
37ER
Triple glazed
Three panes with a Low-E coating on surface 5. U-value 1.42.
Option
39ER
Triple glazed, two Low-E coatings
Three panes with Low-E coatings on surfaces 2 and 5. U-value 1.19, the warmest option.
Blinds between the glass, white or satin greyTinted glass, bronze or greyGrilles, rectangular or Georgian
Layouts & sizes
2, 3 or 4 Panels, 5 to 12 Feet Wide
Pick the layout that suits your opening. Every size below is a standard Novatech size (width × height); we measure your opening and recommend the right one.
Sliding panel (X)
Fixed panel (O)
Drawings show the door from outside
Blinds Integrated blinds available
OX or XO
2 panels · 6 ft
- 71½″ × 79½″Blinds
- 70½″ × 81″Blinds
- 71½″ × 95½″
OX or XO
2 panels · 7 & 8 ft
- 82½″ × 81″
- 83½″ × 95½″
- 95½″ × 79½″
- 94½″ × 81″
- 95½″ × 95½″
XOX
3 panels · 9 & 12 ft
- 105″ × 79½″Blinds
- 1037⁄16″ × 81″Blinds
- 105″ × 95½″
- 1393⁄8″ × 81″
OXO
3 panels · 9 & 12 ft
- 1073⁄16″ × 79½″Blinds
- 1055⁄8″ × 81″Blinds
- 1073⁄16″ × 95½″
- 1415⁄8″ × 81″
- 1431⁄8″ × 95½″
XOO or OOX
3 panels · 9 & 12 ft
- 1073⁄8″ × 79½″Blinds
- 10513⁄16″ × 81″Blinds
- 1073⁄8″ × 95½″
- 1417⁄8″ × 81″
OXXO
4 panels · 10 & 12 ft
- 1167⁄16″ × 79½″Blinds
- 114½″ × 81″Blinds
- 1167⁄16″ × 95½″
- 140½″ × 79½″Blinds
- 1387⁄16″ × 81″Blinds
- 140½″ × 95½″
Need more light? Sidelites and transoms can be added to the door.
Make it yours
Options & Upgrades
Everything Novatech offers on the 550. Ask about any of these during your free in-home quote.
Light & privacy
- Blinds between the glass (white or satin grey), one-button control, virtually maintenance-free
- Grilles, rectangular or Georgian, 5/8″ or 1″ (between the glass or perimeter)
- Tinted glass (bronze or grey)
- Triple glazing
- Sidelites and transoms
Security
- Double-point locking system, zinc or stainless steel
- Keylock
- Keyed alike
- Security bar, white or black
- Three-position kick lock
- High-performance reinforcement (standard on custom-colour doors)
Weather & finishing
- Sill tower riser for better water resistance
- Anodized aluminum threshold cover
- Aluminum sill extension*
- Reinforced screen
- Interior vinyl cladding
- Interior wood extension on 3 or 4 sides with vinyl cladding*
- Vinyl brick mould*
- Drywall return
- Nailing fin
- Interior vinyl jamb pocket cover
- Exterior jamb pocket cover (XOX doors only)
* On factory-assembled doors.
Specifications
The 550 at a Glance
- Construction
- Vinyl door on a wood frame
- Frame depth
- 5¾″, 7¼″, 9¾″ or 11¾″
- Sliding panels
- Aluminum-clad, fusion-welded corners, steel-reinforced sides
- Glass
- Tempered Low-E with argon and a low-conductive spacer
- Handle
- Look handle standard, View handle optional
- Locking
- Double-point lock in zinc or stainless steel
- Energy
- ENERGY STAR® certified, up to ER 39
- Warranty
- 20-year limited, from Novatech
