Ultra Windows Series

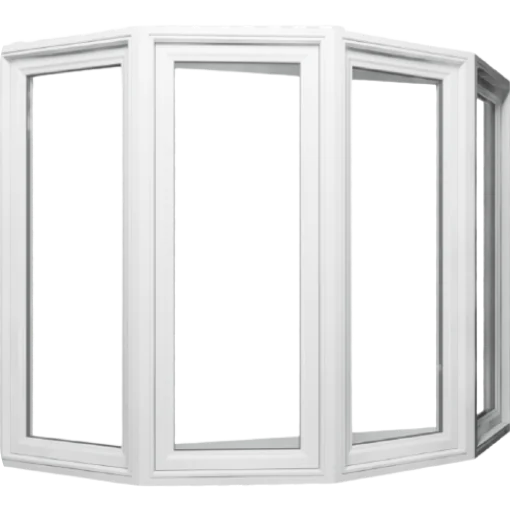

Bay Windows
Add more comfort and architectural detail to your home and maximize your views for your home with our energy-efficient bay windows. Extend your room outward elegantly.
Bay windows are a combination of fixed and operable windows, making a curve that protrudes beyond the exterior walls - providing additional natural light and ventilation and widening the feel of a room with panoramic views and depth.
Why bay
Bay Window Features
Our windows are specifically designed to withstand the extreme weather conditions of Manitoba. See what makes our bay windows the perfect choice for your home. For more details contact us.
Custom Capabilities
You can get your bay window fabricated in custom size, design, shape, finish, texture, glass and grille designs.
Multi-Point Lock
Reliable locking system for enhanced security that locks at the top and side of the window.
Window Grills
Window grills in between the glass panes to divide the window into smaller sections. Our grills are available in different styles and colors to match unique traditional and modern designs.
Recessed Tilt Latches
Our recessed design for bay windows ensures a seamless and attractive sight line in your window.
Foam “warmware”
As an optional feature, the frame and sash of the windows are insulated with polyurethane foam for additional insulation.
Triple Seal
The triple layer premium Fin Seal stops air and water transmission and significantly blocks external noise.
Energy Efficient
Our windows are meticulously designed to allow the sunlight into the house while letting solar heat in and resisting cold weather. They are Energy Star certified - which means they would help cut down the overall cost of your energy bills.
Maximum Natural Light
As bay window fits in the middle of the main wall of the facade of your home, it allows the room to receive a great deal of natural light and makes the room look spacious.
Push Down Screen
Light-weight aluminum frame with mesh retention system and custom matching colors. Ideal for privacy, shade and bug protection.
Energy Star® certified
Energy Efficient Bay Windows
Bay Windows installed by Arctic Star across Winnipeg and surrounding areas are approved by NFRC and we are Homestars verified. Our windows and doors carry the Energy Star® label that show their rating. All of our windows meet and exceed the latest Energy Star designation criteria in Canada.
Inside the glass
Energy Efficiency & Glass
Triple and Double glass
Using two glass panes (double glazed), the air gap in between the panes significantly reduces heat and sound loss and therefore conserves energy. This ensures warmer temperatures stay inside the room during winter, as it prevents heat from leaving the inside of your nicely-warmed rooms.

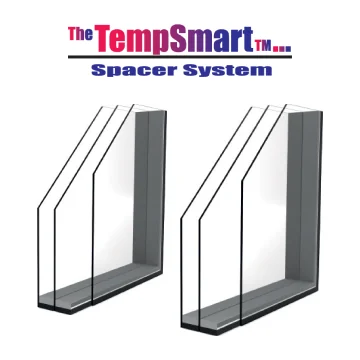

TempSmart™ Spacer System
It is a U-shaped silicone foam tape seal in between window glass panes that improves glass surface temperature and has a good sound absorption. It has a significant role in the overall performance of a window as it determines the amount of heat or cold that can pass through the glass panes. Used with Hot Melt butyl, it provides a great Warm-edge seal - that features a vapor backing system.

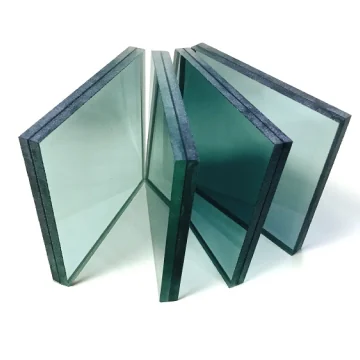

Laminated glass
This exceptional glass consists of two glass sheets that are permanently bonded to a tough, durable plastic interlayer. Laminated glass has a distinct property that it does not shatter like ordinary glass and the interlayer can absorb repeated blows from tools and weapons including bricks, hammers and crowbars. Glass cutters are also rendered useless for burglary, as the glass requires to be cut from both sides. Laminated glass offers a vital contribution toward protecting your family and valuables.
Glass coatings
Low-E Options
Our windows are available with a range of Low-E glass types from industry-leading manufacturers, each one engineered to meet your needs while keeping you comfortable in temperate or extreme climates.
Energy Upgrades
Solar gain Low E glass
The best glass for most applications in a northern climate. It has a very high retention rate of the heat in your home in winter and prevents heat gain in summer. Since as much as 95% of your energy expense for heating and cooling combined goes for heating, this glass is more cost effective than other glass without a high SHGC.
Solar shield Low E glass
Is chosen for uses where cooling costs outweigh heating costs in your energy usage, or where summer discomfort from heat build-up should be an important concern. This is the best glass for most applications in a southern climate. It has a very high reflection rate of the radiant outside heat to prevent heat gain in summer and in winter it still retains radiant heat once you turn on your furnace!
See and hear the difference with Diamond Premium Glass
VWD’s Diamond Premium Glass is 33% to 100% thicker than industry standards—that’s why it’s called Diamond Premium Glass! What this means is that outside noises stay outside where they belong, truly making your home a sanctuary. A window with Diamond Premium Glass will withstand much greater impact and will be a better insulator.
Foam-Insulating Windows Close the Gap on Energy Costs
Best of all, Foam-insulating windows provide an additional benefit to the already impressive advantages of warm edge and gas filling upgrades. The frame makes up about 15% of a window. Foam can provide up to a 10% reduction in heat loss through the window frame.
Argon Gas
Filled units reduce your window’s conduction and convection of heat. Argon works well with Low E glass to maximize your new window’s energy efficiency and performance.
Krypton Gas
Filling works where Argon can’t! It is ideal for smaller air spaces created in triple glazing and can be combined with Argon in intermediate size spaces.
E-Clean Glass
Combines the benefits of Solar Shield LOW E with unique outer glass coating that gradually breaks down dirt while causing rain to sheet.
Triple Glazing With Zero Calories
With the insulation value of Triple Glass exceeding R8, this benefit is in demand by homeowners looking to save money on their heating bill with the added bonus of being kind to the environment.
Make it yours
Window Colours
While most clients prefer windows in stock white, which is a nice neutral color, you might want to browse through our vast selection of durable factory finishes on windows, to suit your specific home style.
Selected colour
Stock white
Tap a swatch to preview it.

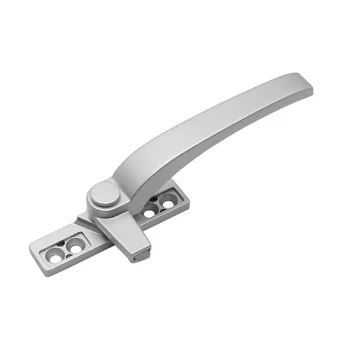

Hardware
Handle & Lever Colours
Adding a complementing window hardware could make the perfect impact to your home's curb appeal. Here are our recommended handle and lever finishes based on the color of your window. Explore your perfect match and maybe try a combo you wouldn't expect.
Privacy & style
Bay Window Glass Finish
When you choose a textured or colored glass, you are assured to have privacy while allowing the natural light into your home, keeping prying eyes at bay. You can go for colored glass to match the design of your home.
Clear
Bronze Tint
Grey Tint
Frosted
Glue Chip
Rain
Silvet
Sandblasted (Acid Etched)
Grilles
Grille Types
Explore our range of window customizations to get your desired window solution to add to your home appeal and make it stand out. The window grilles facilitate easy cleaning, apart from exhibiting the enchanting traditional separated lites.
Colonial Grill
1/4" x 5/8"Woodgrain or option available to paint
Colonial Grill
1/4" x 1"Paint available. Woodgrain not available
Colonial Grill
1/4" x 5/8"Woodgrain
Distinct Grill
1/4" x 5/16"Brass. Paint option not available
Distinct Grill
1/4" x 5/16"White. Paint not available
Distinct Grill
1/4" x 5/16"Pewter. Paint not available
Contour Grill
8mm x 18mmPaint and Woodgrain not available
Contour Grill
8mm x 25mmPaint and Woodgrain not available
Between the glass
Mini Blinds
Blinds between the dual pane glass are 100% secured.
- No dusting
- No apparent cords, hence child and pet safe
- Increased energy efficiency
- You can raise, lower and tilt blinds
- Argon gas filled sealed units
- Minimal resistance operating mechanism
Blind colours
Fit your walls
Product Options
Jamb extension options available for 1000 Series windows.
Interior Jamb Extension Options
Vinyl Clad Jamb
1 3/8" PVC Jamb
2 3/8" PVC Jamb
3 3/8" PVC Jamb
4 5/8" PVC Jamb
PVC Oak Jamb
Pine Jamb
Primed Wood Jamb
Foam Jamb
3/4" Drywall Return
Jamb Cap
Exterior Jamb Extension Options
5/8" Brickmould
1 1/2" Brickmould
1 1/4" Brickmould
2" Brickmould
3 1/2" Brickmould
Brickmould J Fin (BMJ)
Nail Fin
Architectural accents
Custom Shaped Windows
Adding a design element to your windows can enhance the style of your home. Specialty shaped windows do more than just serve a functional purpose, they can transform your home into a work of art. Elegant arches, sharp angles, and fascinating curves complement the architectural style of your home. These windows can be used alone or in combination with other windows.
Extended part round
Circle
Octagon
Half round
Triangle
Trapezoid / Pentagon / Cathedral
Free in-home quote
Price your bay windows
Tell us how many windows you’re replacing and when suits you. We’ll measure, show samples and give you a written quote. No pressure, no obligation.
- Made in Canada, Energy Star® certified
- Lifetime transferable warranty
- Efficiency Manitoba rebate of $100 per triple-pane window
